Palisades Dental Impact Air 45 C XTend / Premium

KITS / TURBINES

Steel Kit Ceramic Kit Steel Turbine Ceramic Turbine

Steel Kit
907-0058

Ceramic Kit
907-6583

Steel Turbine
907-1869

Ceramic Turbine
PD826-R01B2LC


ADDITIONAL PARTS

TOOLS

Blank Bur Impeller Autochuck Head Cap Head Cap Cap Wrench Insert A Insert 0

Blank Bur
907-1066

Impeller
907-1887

XXX
107-xxxx

XXX
907-0XXX

Head Cap
907-0181

Cap Wrench
107-2239

Insert A
907-1081

Insert 0
907-1078

BEFORE YOU BEGIN

After reviewing the training video and STEP-by-STEP instruction sheet, install the blank bur provided with your EZ Press. Tap the bur against the counter and try to pull it out using your fingers. If bur pulls out call ProScore for replacement spindle/collet.

STEP 1
STEP 1

Loosen head cap using appropriate cap wrench and remove turbine, orings, and 2 washers. If head cap and turbine come out together, separate and set head cap aside.

Inspect the head and head cap for debris and clean thoroughly using a cotton swab and handpiece cleaner. If any debris is overlooked the turbine may not fit back into either the head cap or head and may bind.

Place Insert A under the spindle ram and Insert 0 under the bearing ram.

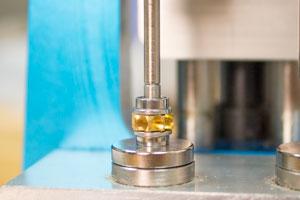

STEP 2
STEP 2

Pick up the turbine and feed the bur up into the Spindle Ram. While holding the turbine in place, slowly pull down on the handle until the rear bearing is resting on Insert A.

Verify alignment, and then pull down firmly on handle. The spindle and chuck will be pressed out through the hole in the center of Insert A and fall into the tray below.

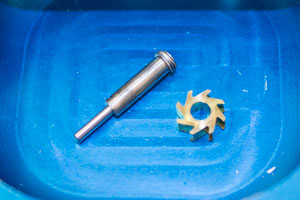

STEP 3
STEP 3

Discard old bearings, o-rings or washers. Inspect the impeller and chuck for any chips, cracks or worn blades. If the any damage is found contact ProScore or order a replacement part.

Examine spindle to verify that the inner-race of the old bearing has not remained on the spindle. It will look like a shiny ring with a groove in it. If the inner-race is still on the spindle, grasp it with a pair of hemostats or cutting dikes. Feed the bur up into the Spindle Ram and repeat the pressing procedure, making sure that the chuck at the rear of the spindle aligns with the hole in Insert A. The inner-race will be pushed off the front of the spindle

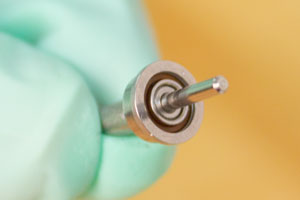

STEP 4
STEP 4

Open your rebuild kit and pick up one of the two bearings. Place the bearing over the bur end of the spindle so that the side with the black ring and flange will be facing up.

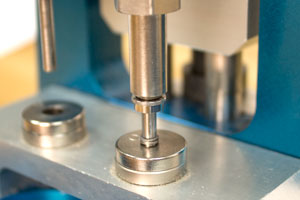

STEP 5
STEP 5

Feed the bur end of the turbine into the Bearing Ram of the press. Hold the spindle in place with your finger and slowly pull down on the handle until the spindle/chuck touches the #0 plate. Verify alignment, and then gently press the bearing onto the spindle until it comes to a stop.

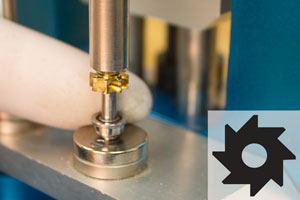

STEP 6
STEP 6

Locate your impeller and pick up your spindle that you just pressed the rear bearing onto. Hold the spindle so the bur points up and drop the impeller over the bur. Locate your impeller and place it over the bur so that with the burfacing you the blades cup to the RIGHT. Repeat the pressing procedure until the impeller comes to a stop. If the impeller is riding loosely on the spindle contact ProScore for replacement.

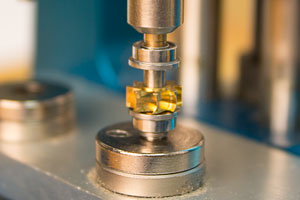

STEP 7
STEP 7

Locate the front bearing and place it over the bur so the black side will be facing down towards the impeller. Repeat the pressing procedure.

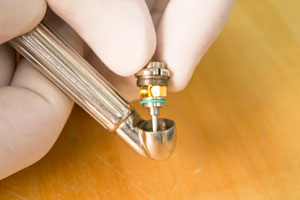

STEP 8
STEP 8

Use your explorer to place the thin, white teflon washer into the head. Then place the thicker, white teflon washer with the grove of the washer facing up toward where the turbine will be. Seat the turbine into the head cap and then install into handpiece. Check the bur for resistance as you tighten the head cap. If you notice any resistance, remove the turbine and re-install. If problem persists, contact Tech Support.
